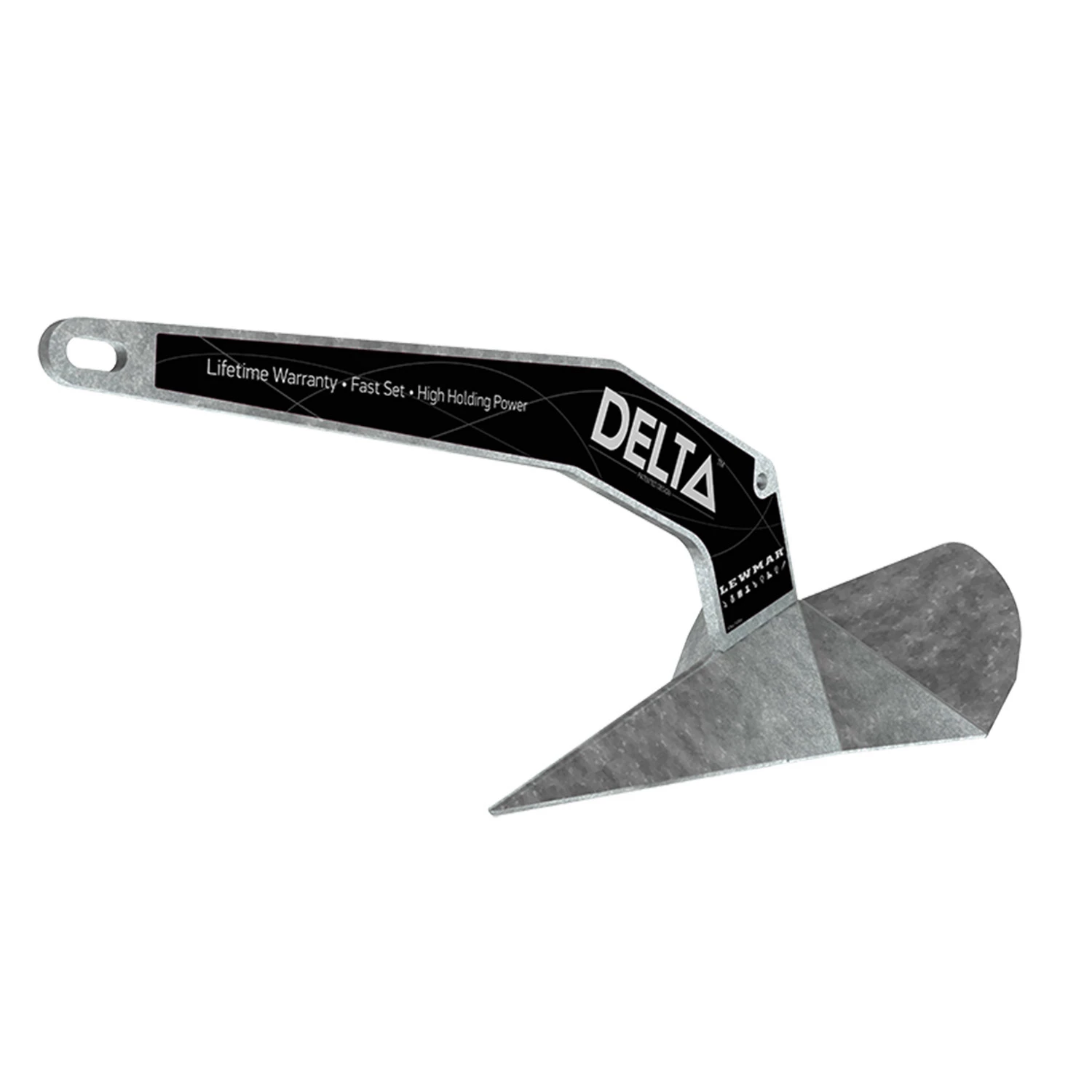

LEWMAR Anchors Galvanized Delta Fast-Set Anchor

Easy handling, self-launching design sets fast in any seabed.

One-piece anchor is Lloyd’s Register-certified for high holding power. Its unique shank profile and ballasted tip make the Delta® anchor self-launching. Balanced to fall unaided from bow rollers, so it’s ideal for use with remotely operated windlasses.

Heavy ballast in the toe section ensures it will engage the seabed upon hitting bottom, and will set immediately. Lifetime warranty against breakage.

• Style: Non-Hinged Plow
• Material: Galvanized-Manganese Steel
• Application: All bottoms
• Pros: Strong, one-piece construction. Narrow cross-section shank for deep penetration. Self-launching design makes it ideal for windlasses
• Cons: Limited holding power in mud
• Warranty: Lifetime against breakage

Weight	Suggested Boat Length	Length	Width	Height	Recommended Chain Dia.	LEWMA#	Model
9lb./4kg	9′-20′	20 1/4″	9″	9″	1/4″ (6-7mm)	0057404	5440516
14lb./6kg	21′-31′	23 3/8″	10 3/8″	10 1/4″	1/4″ (6-7mm)	0057406	318040
22lb./10kg	25′-41′	27 3/8″	12 1/4″	11 1/4″	5/16″ (8mm)	0057410	318057
35lb./16kg	35′-52′	32″	14 1/4″	13 1/2″	5/16″ (8mm)	0057416	318065
44lb./20kg	40′-58′	34 1/2″	15 3/8″	15 1/4″	3/8″ (10mm)	0057420	318081
55lb./25kg	45′-64′	37 1/4″	16 3/8″	16 1/4″	3/8″ (10mm)	0057425	318073
70lb./32kg	65′-68′	40 1/4″	17 13/16″	15 1/2″	3/8″ (10mm)	0057432	10258572
88lb./40kg	60′-75′	43 1/2″	19 1/4″	18 3/4″	3/8″ (10mm)	0057440	367518
110lb./50kg	76′-82′	46 1/4″	20 1/2″	19 1/8″	1/2″ (12mm)	0057450	6715593
140lb./63kg	80′-88′	50″	20 3/4″	21 1/8″	1/2″ (12mm)	0057463	6715601
