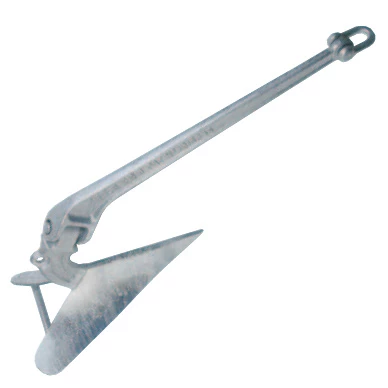

LEWMAR CQR™ Anchors

Hinged shank delivers superior holding and setting performance in the worst conditions.

An anchor whose initials are an acronym for “Secure,” the CQR™ is a favorite among bluewater cruisers for its strength and performance in a wide range of bottom conditions. The plow shaped design provides excellent penetration and holding power in sand, weeds, rocks and mud. The hinged shank prevents break-out during wind shifts. A trip line can be attached to an eye cast into the horn to make desired break-outs easier when retrieving the anchor.  Drop-forged steel construction provides increased strength and reliablility under load– a genuine CQR™ anchor will not break. Hot-dipped galvanized finish offers added corrosion resistance. The combination of the tapered shank and unique hinged plow make for trouble-free anchor roller stowage. Feel secure and rest peacefully in a wide range of conditions with a genuine CQR™ anchor.

Key Features

• Hinged plow design provides legendary performance
• Provides holding power in a wide range of seabeds
  • Penetrates weeds, sand and mud.
  • Hooks rocks
• Forged galvanized steel for corrosion resistance
• Self-stabilizing, single point penetration
• Tapered shank and hinged plow makes stowing on an anchor roller easy
• A larger than conventional size is recommended for a given boat size; see chart below
• Lifetime warranty against breakage

CQR™ Anchor Selection Chart

Weight	Boat Length	Length	Width	Height	Model
35lb.	26′-45′	38 5/8″	13″	15″	106757
45lb.	32′-58′	40 5/8″	14″	17″	106765
60lb.	45′-65′	44″	15 3/8″	16″	176784
75lb.	52′-72′	46 7/8″	16 1/4″	17 3/8″	349597
105lb.	70′-90′	47″	19″	15 1/4″	589384
140lb.	80′-90′	52 5/8″	21 1/8″	23″	6715460
180lb.	90′-100′	57″	23″	25″	6715478
240lb.	100′-102′	61 1/2″	25 1/4″	27 3/8″	6715486
300lb.	105′-110′	66 1/4″	27 1/4″	29 3/8″	6715494
400lb.	110′-115′	73 1/2″	30″	32 1/2″	6715502
500lb.	115′-120′	83″	32 1/2″	34 1/2″	6715510
600lb.	120′-125′	84 1/8″	34 1/4″	37 3/8″	6715528

Anchor Datasheet
