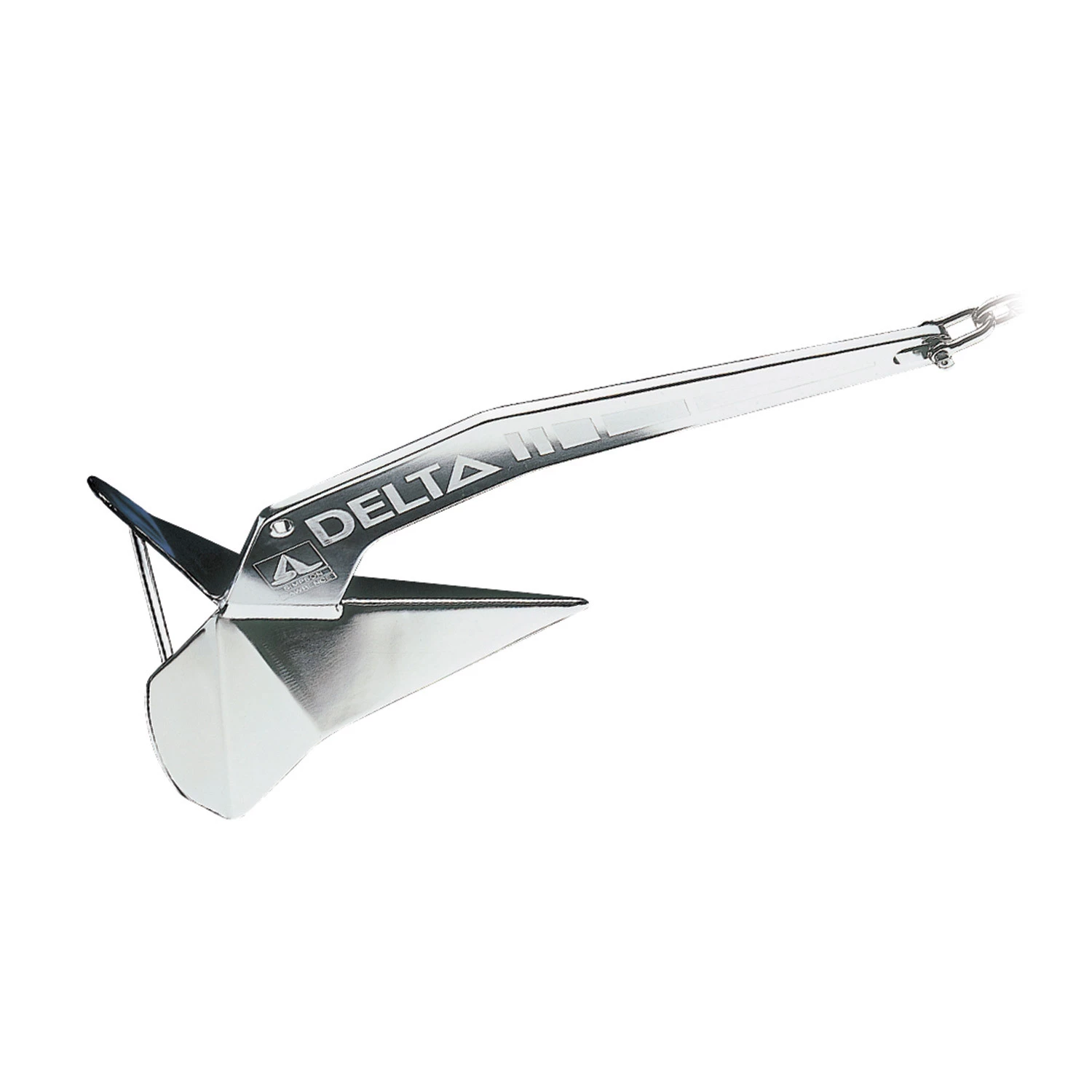

LEWMAR Stainless Steel Delta Fast-Set Anchors

Easy handling, self-launching design sets fast in any seabed.

Stainless steel Delta® anchor will enhance your boat’s appearance. One-piece anchor is Lloyd’s Register-certified for high holding power. Its unique shank profile and ballasted tip make the Delta® anchor self-launching. Balanced to fall unaided from bow rollers, so it’s ideal for use with remotely operated windlasses.

Heavy ballast in the toe section ensures it will engage the seabed upon hitting bottom, and will set immediately. Lifetime warranty against breakage.

• Style: Non-Hinged Plow
• Material: Duples Stainless Steel
• Application: All bottoms
• Pros: Strong, one-piece construction. Narrow cross-section shank for deep penetration. Self-launching design makes it ideal for windlasses
• Cons: Limited holding power in mud
• Warranty: Lifetime against breakage

Weight	Suggested Boat Length	Length	Width	Height	Recommended Chain Diameter	LEWMA#	Model
14lb./6kg	21′-31′	23 3/8″	10 3/8″	10 1/4″	1/4″ (6-7mm)	0057306	6715536
22lb./10kg	25′-41′	27 3/8″	12 1/4″	11 1/4″	5/16″ (8mm)	0057310	6715544
35lb./16kg	35′-52′	32″	14 1/4″	13 1/2″	5/16″ (8mm)	0057316	6715551
44lb./20kg	40′-58′	34 1/2″	15 3/8″	15 1/4″	3/8″ (10mm)	0057320	6715569
55lb./25kg	45′-64′	37 1/4″	16 3/8″	16 1/4″	3/8″ (10mm)	0057325	6715577
88lb./40kg	60′-75′	43 1/2″	19 1/4″	18 3/4″	3/8″ (10mm)	0057340	6715585
