LEWMAR Windlasses & Rollers CPX Vertical Windlass

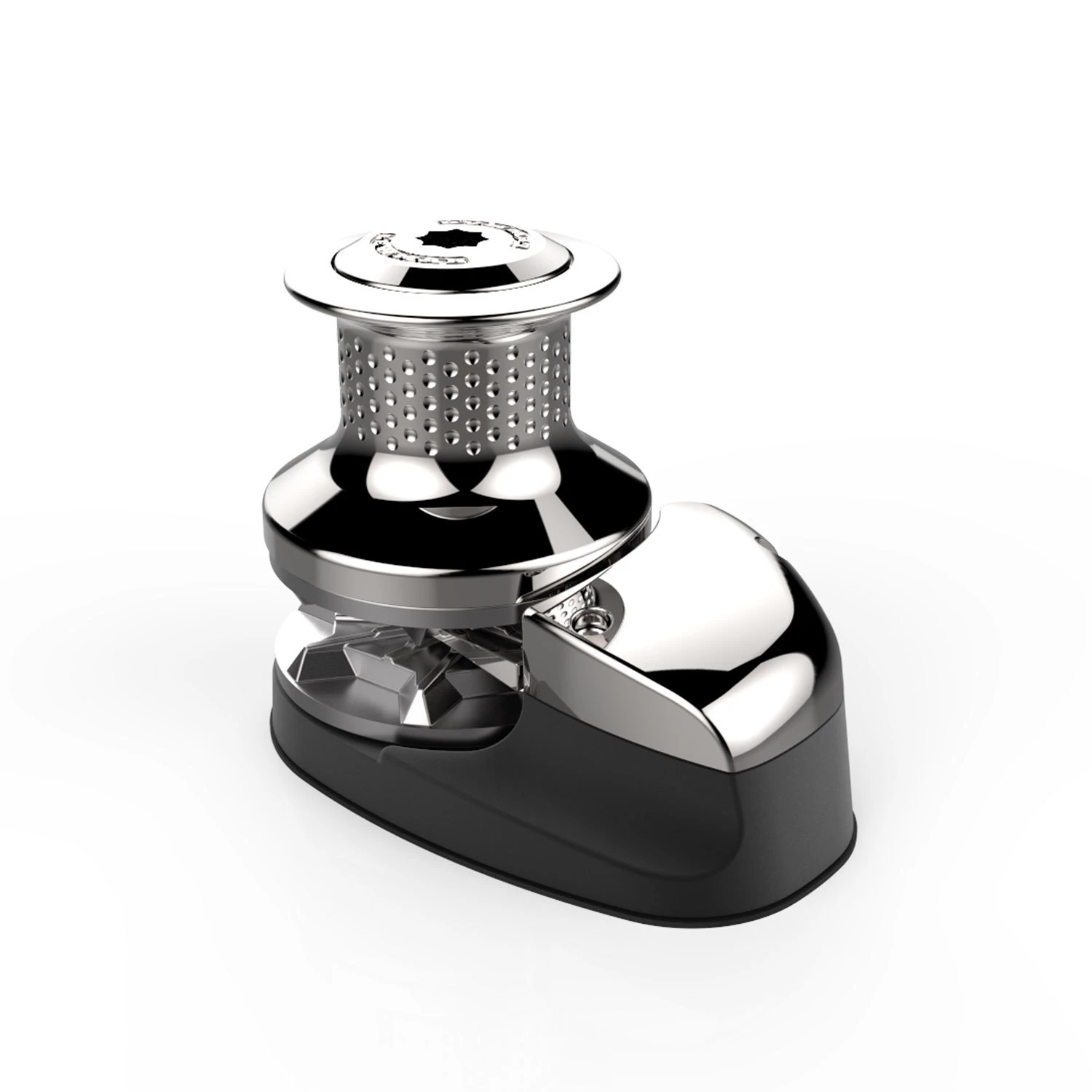

CPX Windlasses are built with tried and tested worm-wheel gearbox architecture and quality materials.

The CPX Vertical Windlass features a 316 stainless steel top cap and chain pipe with an alloy base, so it is lighter than the all stainless steel V-Series deck units. With an emphasis on reliability, Lewmar updated the architecture and reduced the number of parts to make this windlass easier to service.

In addition to new styling, Lewmar included an IP56 splash-protected motor and worm drive gearbox for maximum strength. The CPX can be fitted with chain pipes for either starboard or port feed, allowing for paired installations. Choose 12V or 24V versions, shown here with gypsy/drum configurations (gypsy only versions available).

All models include circuit breaker, solenoid, up/down switch, wraparound stripper, manual override for emergency release and cone clutch drive for smooth control. A manual recovery option is available to provide anchor retrieval in case of power failure.

Key Features

• IP56 splash-protected motor and worm drive gearbox for maximum pulling power
• Can be fitted with chain pipes for either starboard or port feed, allowing for paired installations
• All models include circuit breaker, solenoid, up/down switch, wraparound stripper, manual override for emergency release and cone clutch drive for smooth control
• Style: Vertical
• Rode Type: Rope/chain
• Case Material: Stainless steel with aluminum alloy base
• Capstan/Gypsy Material: Stainless steel
• Width: 6-5/16″
• Length: 8-11/16″
• Warranty: Three years

Owner’s Manual

CPX Drum/Gypsy Windlass Selection Chart

	Boat Length	Chain Dia.	Line Dia.	Max Pull	Voltage/Amperage	Speed Up/Min.
CPX2 12V 003 Kit	30′-40′	3/8″ HT	5/8″	1,433lb.	12V/80A	69′ (358lb.)
CPX2 12V 002 Kit	30′-40′	5/16″ HT	9/16″-5/8″	1,433lb.	12V/80A	69′ (358lb.)
CPX3 12V 002 Kit	40′-50′	5/16″ HT	9/16″-5/8″	1,962lb.	12V/85A	92′ (473lb.)
CPX3 24V 002 Kit	40′-50′	3/8″ HT	5/8″	2,248lb.	24V/60A	98′ (535lb.)
CPX3 12V 003 Kit	40′-50′	3/8″ HT	5/8″	1,962lb.	12V/85A	92′ (473lb.)
