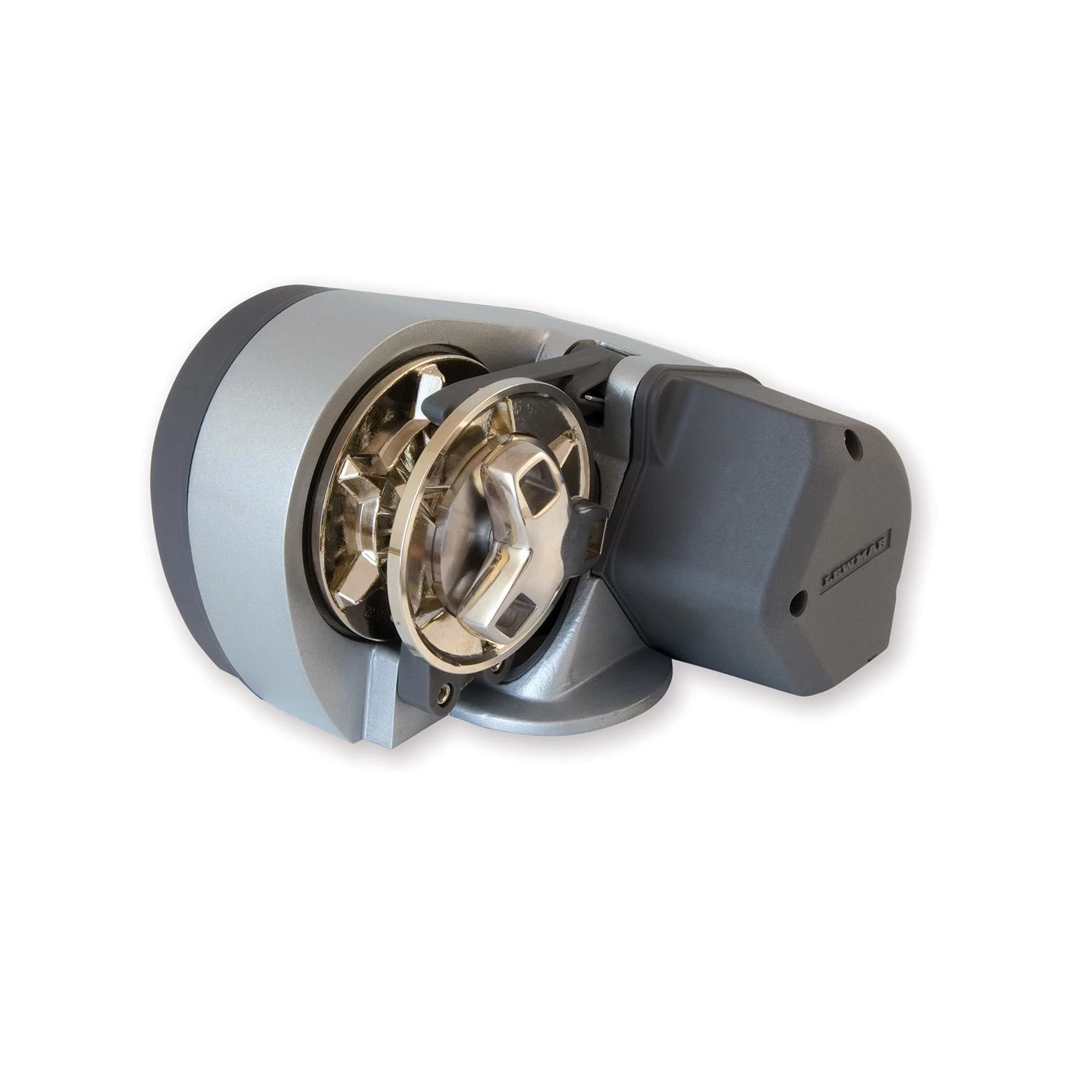

LEWMAR Windlasses & Rollers Pro-Sport 550 Windlass

An excellent combination of quality and performance in an economical package for rope/chain applications.

This anchor windlass features convenient do-it-yourself, above-deck installation and push-button control for easy anchoring. Offers power up/power down and manual freefall for getting the anchor down quickly and has a horizontal gypsy for 1/2″ line and 1/4″ chain.

It’s designed around a highly efficient spur gearbox using a smaller, more powerful permanent magnet motor that provides superior line speed and low power consumption. Rugged aluminum center case is surrounded by durable, protective composite side covers.

Key Features

• For boats from 20-30′
• Port side mounted gypsy
• Includes up/down toggle switch, 25A circuit breaker and mounting hardware
• 5-5/8″H x 7-1/8″W x 8-7/16″L
• Style: Horizontal
• Rode Type: Rope/Chain
• Line: 12 mm (1/2”) 3 Strand and 8 Plait
• Chain: 7 mm DIN 766, 1/4” ACCO ISO G43 (G4), 1/4” ACCO BBB (3B)
• Draw: 12.5A
• Case Material: Aluminum inner, protective composite outer
• Capstan Gypsy Material: Chromed bronze
• Warranty: Three years

Owner’s Manual
