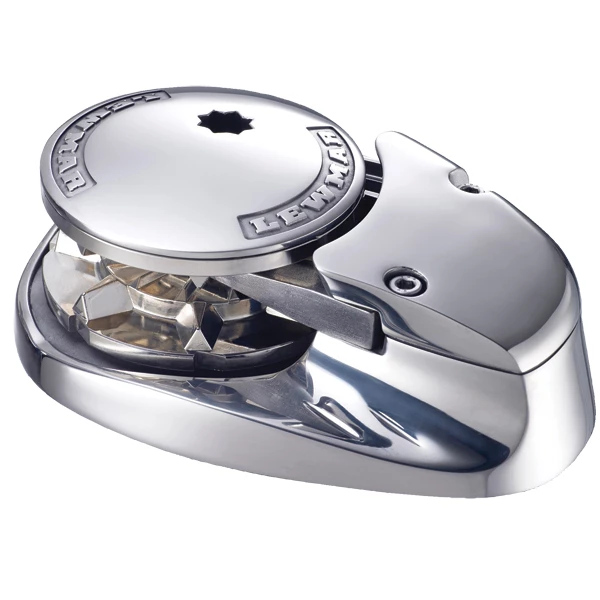

LEWMAR Windlasses & Rollers V700 Vertical Windlass

Fast line speeds, “FallSafe” gypsy lock and an emergency manual deployment option.

With 100% 316 stainless steel housing and a sleek flush-mount design that hides the motor down below, the V700 is one of the most attractive and durable windlasses. It works at the push of a button.

The low-profile deck unit is fitted with a heavy-duty control arm and stripper. Noteworthy is the “FallSafe” gypsy lock that prevents accidental deployment while under way. Rated IP67 (waterproof to one meter), it includes an impact-resistant motor cover, solenoid and reed switch magnet fitted as standard for chain counter. For powerboats and sailboats.

Key Features

• 100% Grade 316 stainless steel deck unit
• IP67 rated housing is completely submersible
• Fall Safe anchor lock prevents accidental deployment
• Fast line speed, typically 50 feet per minute, maximum 82 feet per minute
• Manual recovery
• Impact-resistant motor cover
• Gypsy Number: 603
• Rope: 12 mm (1/2”) 3 Strand and 8 Plait
• Chain: 6mm DIN 766, 6 mm ISO 4565, 7 mm DIN 766, 1/4” ACCO ISO G43 (G4), 1/4” ACCO BBB (3B)
• Motor Power: 320W
• Style: Vertical
• Boat Length: To 35′
• Rode Type: Rope/chain
• Maximum Pull: 700lb.
• Case Material: 316 stainless steel
• Capstan/Gypsy Material: Stainless steel
• Warranty: Five years

What’s in the Box

• V700 Vertical Windlass
• Base gasket seal and below-deck mounting clamps
• Mounting studs: 3″ x 5/8″ qty – 3 ( with nuts and washers )
• All-in-one Installation Wrench
• Toggle switch and circuit breaker
• Installation and operation manual

Items needed for install (sold separately)

• Wiring and terminals
• Hole saws – 2-1/2″ and 4-1/2″
• 3/8″ drill bit
• Drill
• Crimp tool
