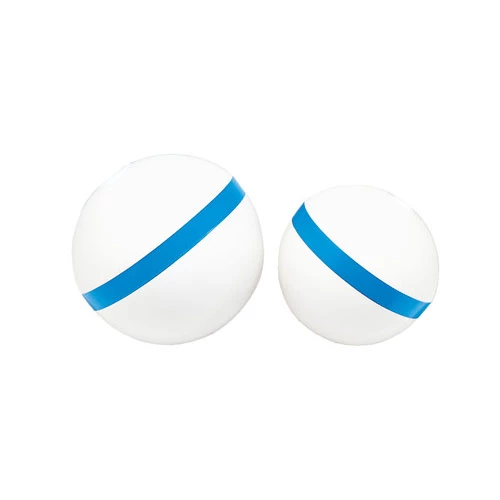

TAYLOR MADE Mooring Gear Sur-Moor™ T3C™ Mooring Buoys

Moor your boat securely with these highly visible buoys.

Sur-Moor™ hard skin mooring buoys have a seamless and tough, one-piece polyethylene shell. Hard skin shells feature ultraviolet light absorbers for long-term life under the sun, and have a sandblasted finish which allows the buoy to be easily painted for visibility. Filled with closed cell foam to positively displace water. Tube-Through-The-Center design with blue reflective striping.

Flotation to support the weight of the ground tackle: The sole purpose of the mooring buoy is to support the mooring chain. The two preferred designs for mooring buoys are a traditional buoy with hardware or a buoy with a tube through the center. Both offer reliable flotation and will last for several seasons, depending upon the salinity of the water. Obviously, freshwater applications will extend the useful life of any mooring system.

Parts of the system: A permanent mooring system, when properly designed, should securely position a boat so that it can be left unattended, with little attention, for long periods of time. Each system usually consists of a mooring buoy (to float the chain), a mooring anchor and a length of chain (running between the anchor and the mooring buoy).

Also the proper ground tackle includes correct sized galvanized shackles and swivels. Always keep in mind, that the mooring system is only as reliable as the ?current? conditions of the environment. All Taylor*Made Sur-Moor™ Buoys are built to withstand the constant abuse of most mooring environments.

For more on how to construct a permanent mooring with these products, see our West Advisor article, Constructing a Permanent Mooring.

• Buoyancy is provided by closed-cell foam protected by a polyethylene shell
• Must purchase mooring collar, chain, O ring and anchor shackle separately
• Three-year warranty
• Hardware not included

Sur-Moor™ T3C™ Selection Chart

Buoy Diameter	Center Tube Diameter	Circumference	Buoyancy† (lb.)	Model
12″	2″	38″	30	396483
15″	2″	47″	60	127888
18″	2 1/2″	57″	100	127896
24″	2 1/2″	75″	240	127904
†Buoyancy rating: The number indicated is the maximum flotation the buoy provides while fully submerged. 50% of this value will be the weight the buoy can support at the level of the blue stripe.
